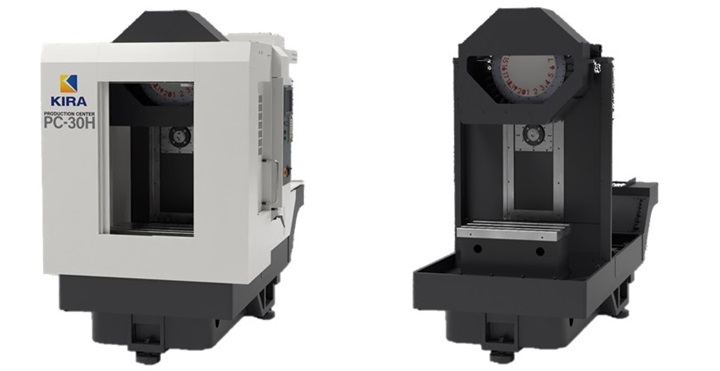

Compact, but high rigidity, horizontal #30 machine
Compact and high rigidity horizontal #30 machine
Compatible with production line and flexible fixture design
- Space-saving type with machine width 1200mm
- Equipped high-rigidity spindle diameter Φ60mm
- Flexible fixture area and excellent for automation
Features
【Space-saving】
Machine width 1200mm
![](https://www.kiracorp.co.jp/wp/wp-content/uploads/2022/12/30He1a.jpg)
Even with an X-axis stroke of 500 mm, the space-saving machine width of 1200 mm allows for efficient installation on production lines.
Center trough type bed
![](https://www.kiracorp.co.jp/wp/wp-content/uploads/2022/12/30He2.jpg)
Center trough type bed ensures chip exhaust.
【High rigidity】
Spindle
![](https://www.kiracorp.co.jp/wp/wp-content/uploads/2022/12/30Hef3.jpg)
The #30 high rigidity machine with ø60 mm spindle has a structure pursuing heavy cutting.
【Flexible fixture area and excellent for automation】
Fixture
![](https://www.kiracorp.co.jp/wp/wp-content/uploads/2022/12/PC30H101.jpg)
The machine is highly flexible and can be used with various type of fixtures.
Automation
![](https://www.kiracorp.co.jp/wp/wp-content/uploads/2022/12/PC30H102.jpg)
Gantry loader can be installed easily.
Automation line
![](https://www.kiracorp.co.jp/wp/wp-content/uploads/2022/12/PC30H103.jpg)
It supports automation to meet your needs.
【Specifications】 |
||
Capacity | X-axis stroke | 500mm |
Y-axis stroke | 400mm | |
Z-axis stroke | 350mm | |
Table | Table size | 700mm x 400mm |
Max. load capacity | 500kg (uniform load) | |
Spindle | Spindle speed | BB type: 50-8000min-1 (standard) |
CB type: 50-12000min-1 (option) |
||
Taper | 7/24 taper No.30 | |
Feed rate | Rapid traverse (X,Y,Z) | 48m/min |
ATC | Tool shank | BT30 |
No. of tools | 20 tools | |
Machine dimension | Machine height | 2332.3mm |
Floor space | 1200mm x 3305mm | |
Mass of machine | Apporox. 4500kg |
